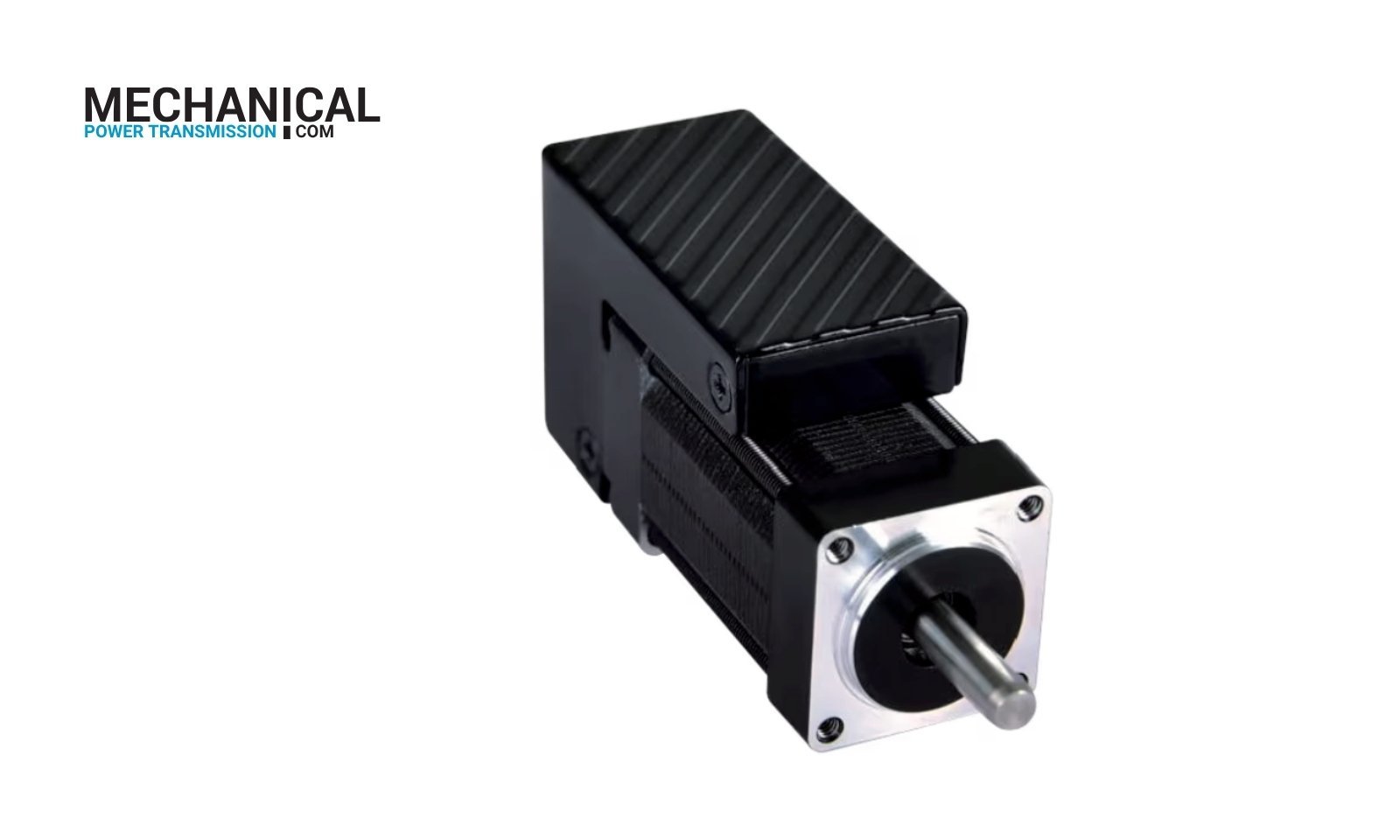

TSM08X3L-R: The World’s Smallest StepSERVO Integrated Motor

Applied Motion Products is pleased to announce our smallest Integrated StepSERVO to date! With a NEMA 8 frame size build, introducing the TSM08X3L-R StepSERVO Integrated Motor.

Benefits

Compact Size: The TSM08X3L-R StepSERVO Integrated Motor’s ultra-compact unit delivers torque-dense performance and precision control, making it ideal for space-constrained applications that demand responsiveness and reliability.

High Torque Density: Up to 30% boost capabilities and 20% more torque compared to an open-loop stepper motor, depending on the rotational speed of the motor.

Energy Efficient: With up to 66% greater energy efficiency, compared to open-loop stepper systems, depending on application demands.

Higher Accuracy: Superior static positioning accuracy (up to ±0.018°) compared to open-loop steppers (±0.09°), with real-time position correction for improved dynamic accuracy.

Higher Acceleration: Higher achievable acceleration rates and speeds for high machine throughput and reduced cycle time.

Features

StepSERVO technology with advanced, smooth, and efficient position, velocity and torque control.

Up to 30% higher “Boost” torque compared to holding for up to 0.5 seconds.

Dual RS-485 ports for configuration, programming, and daisy-chain network connections.

Modbus RTU for seamless communication with PLCs and HMIs.

Q programming control mode for stand-alone operation.

Built-in 16-bit magnetic, single turn absolute encoder (20000 pulses/rev) for closed-loop control.
